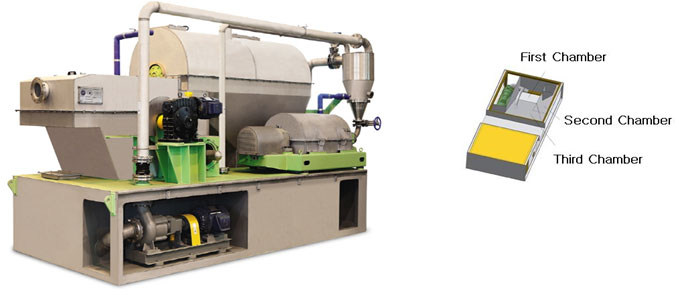

Sludge Filtration Machine (Human/Livestock Waste) treats human/livestock wastewater, carried by feces vehicle to waste-water treatment facility for pretreatment. 4-step including a rotary screen, double-layered filtration (two screens with 1.5mm wedge and Ø5 holes) and centrifugal separator (35 m3/hr) can filter large sludge, seeds, hair, animal hair and grits from carried waste-water. Attached deodorizer can safely removes odor produced in the machine during the process.

Structural Features

• 4-Step Integrated Processing (Rotary screen, double-layered filtration, centrifugal separator)
• Packaging system restricting odor at maximum
• Requires minimum installation space
• Select among automatic, semi-automatic and manual operation
• Safety device installed in each step
• Perfectly remove small seeds, animal hair and grits by double-layered filtration

type

Double-layered Filtration (Combined)	1.5mm wedge type	Ø5 holes type

[ Chamber Underneath]

Product Specification

Product Specification

Code	Capacity	Power	Specification			Weight
			W	L	H
DMT-50	50 m3/hr	29.5kW	2000	4140	2880	6000kg
DMT-100	100 m3/hr	35kW	2000	4250	2880	6500kg
DMT-150	150 m3/hr	44.5kW	2200	4400	2880	7000kg
Code	Capacity	Power	Specification			Weight

Waste-water treatment Process

Diagram of Integrated Sludge Treatment Machine

Part Name

Part Name
① Slude Screen	⑤ Caentrifugal Separator	⑩ Wastewater Drop
② Screw Press	⑥ Chamber	⑪ Detecting sensor
③ Double Layered Filtration (1st Step: wedge Type) (2nd Step: Hole Type)	⑦ Outlet of sludge and seeds	⑫ Cleaning brush
	⑧ Outlet of treated water	⑬ Transport pump
④ Cyclone	⑨ Outlet of fine impurities and grits	⑭ Deodorizer
